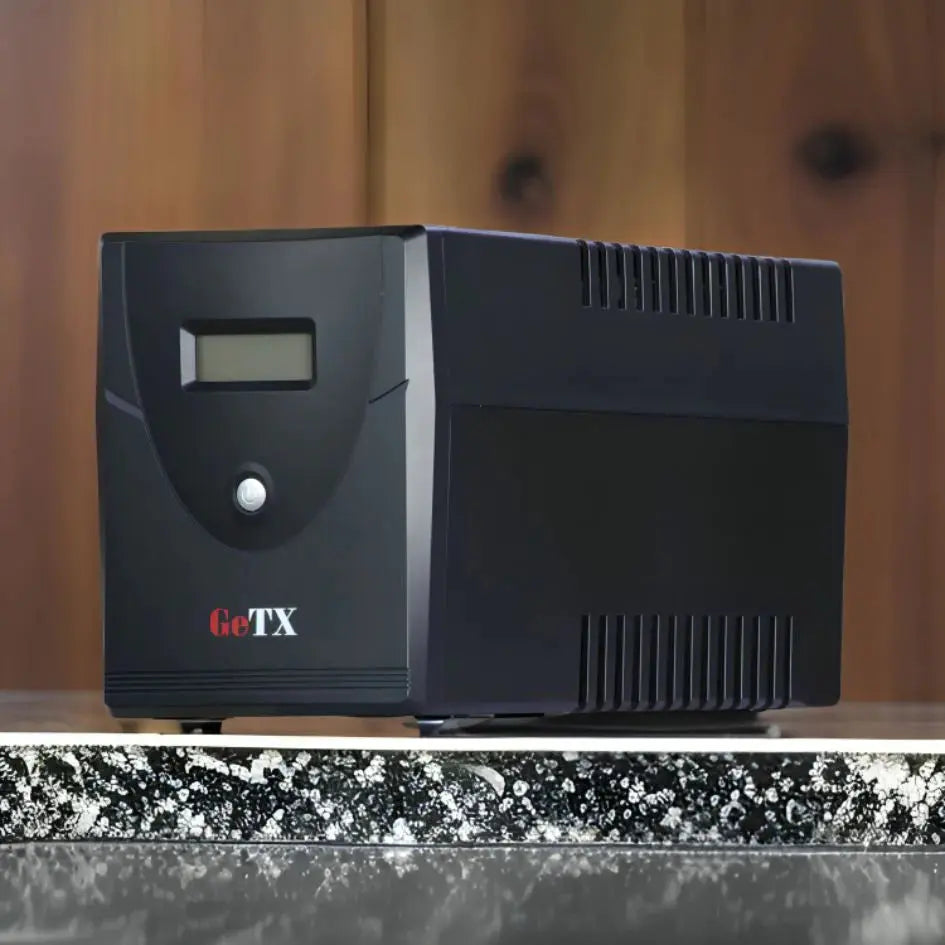

UPS GeTX GXK-1500-C (1500VA), Line interactive, LCD Battery 12v-9a *2 يوبي اس

Key Features:

• Line Interactive UPS with simulated sinewave output
• Excellent microprocessor control guarantees high reliability (Internal self-diagnostic technology)
• Boost and buck AVR for voltage stabilization (wide input range with two boost and one buck control)
• Auto restart while AC is recovering
• Cold start function



Model: GXK-1500-C

Capacity (VA/Watts): 1500 / 900

INPUT:

• Voltage: 220/230/240Vac
• Voltage Range: 140~300Vac
• Frequency Range: 50/60Hz (auto sensing)

OUTPUT:

• AC Voltage Regulation (Batt. Mode): ±10%
• Frequency Range (Batt. Mode): 50/60Hz ±1 Hz
• Transfer Time: Typical 4-8ms
• Waveform (Batt. Mode): Simulated Sinewave

BATTERY:

• Battery Voltage: 24Vdc
• Battery Type & Number: 12 V / 9Ah x 2
• Typical Recharge Time: 6~8 hours recover to 90% capacity

INDICATORS:

• LED Display (LED version): AC Mode, Battery Mode, Overload, Fault
• LCD Display (LCD version): AC Mode, Battery Mode, Load Level, Battery Level, Input Voltage, Output Voltage, Overload, Fault, and Battery Low

PROTECTION:

• Full Protection: Short circuit, Overload, Overcharge, and overdischarge protection

ALARM:

• Battery mode: Sounding every 10 seconds
• Low Battery: Sounding every second
• Overload: Sounding every 0.5 second
• Battery Replacement Alarm: Sounding every 2 seconds
• Fault: Continuously sounding

MANAGEMENT:

• Communication port: USB or RS232 (Supports Windows 2000/2003/XP/Vista/2008, Windows 7, Linux, Unix, and MAC)

OPERATING ENVIRONMENT:

• Humidity: 0-90 % RH @ 0- 40°C (non-condensing)
• Noise Level: Less than 55dB

PHYSICAL:

• Approx. Dimension D * W * H (mm): 380158198
• Approx. Net Weight (kgs): 10.1
