الوصف

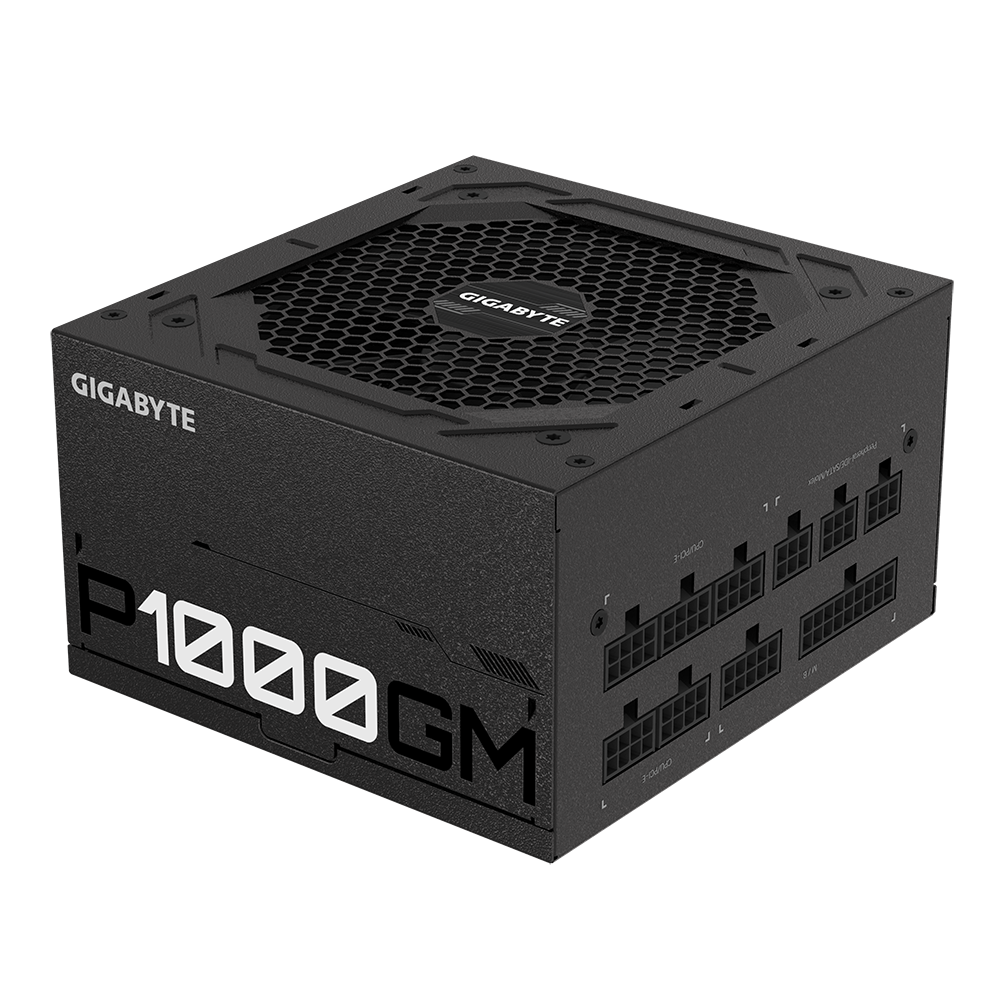

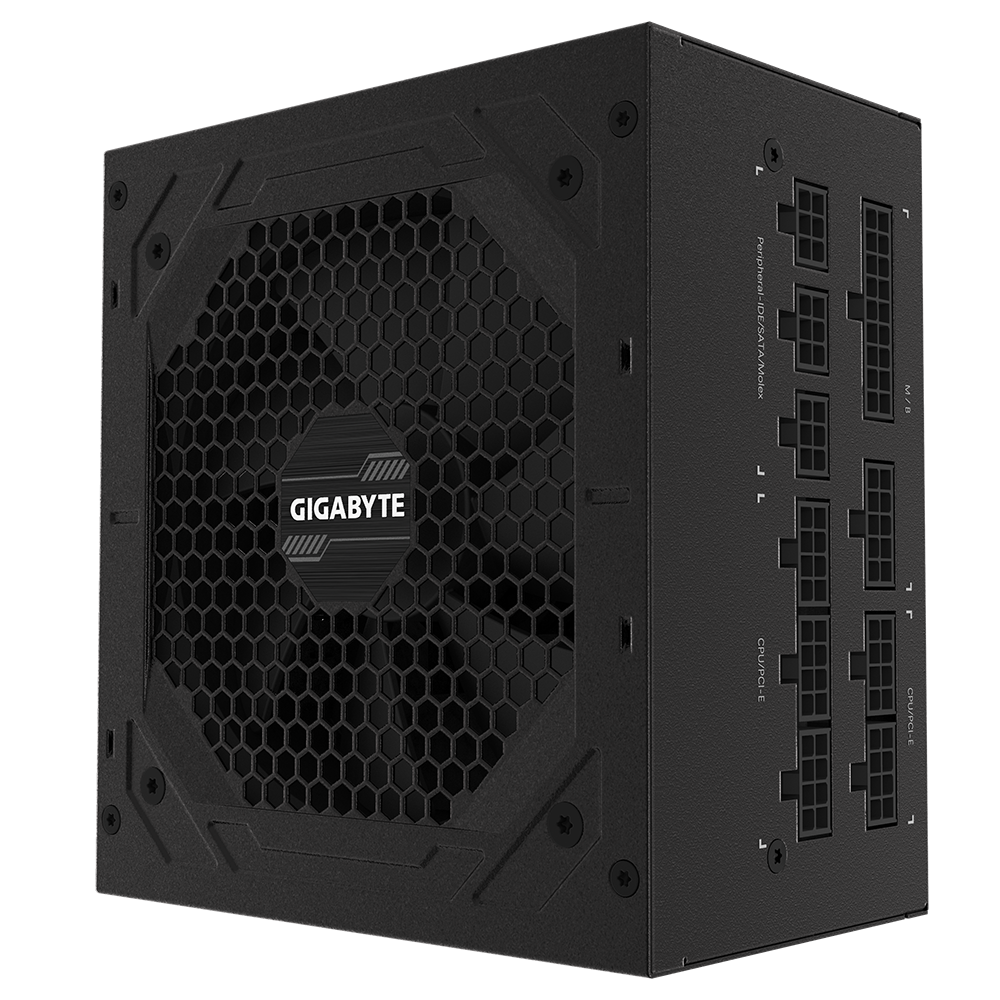

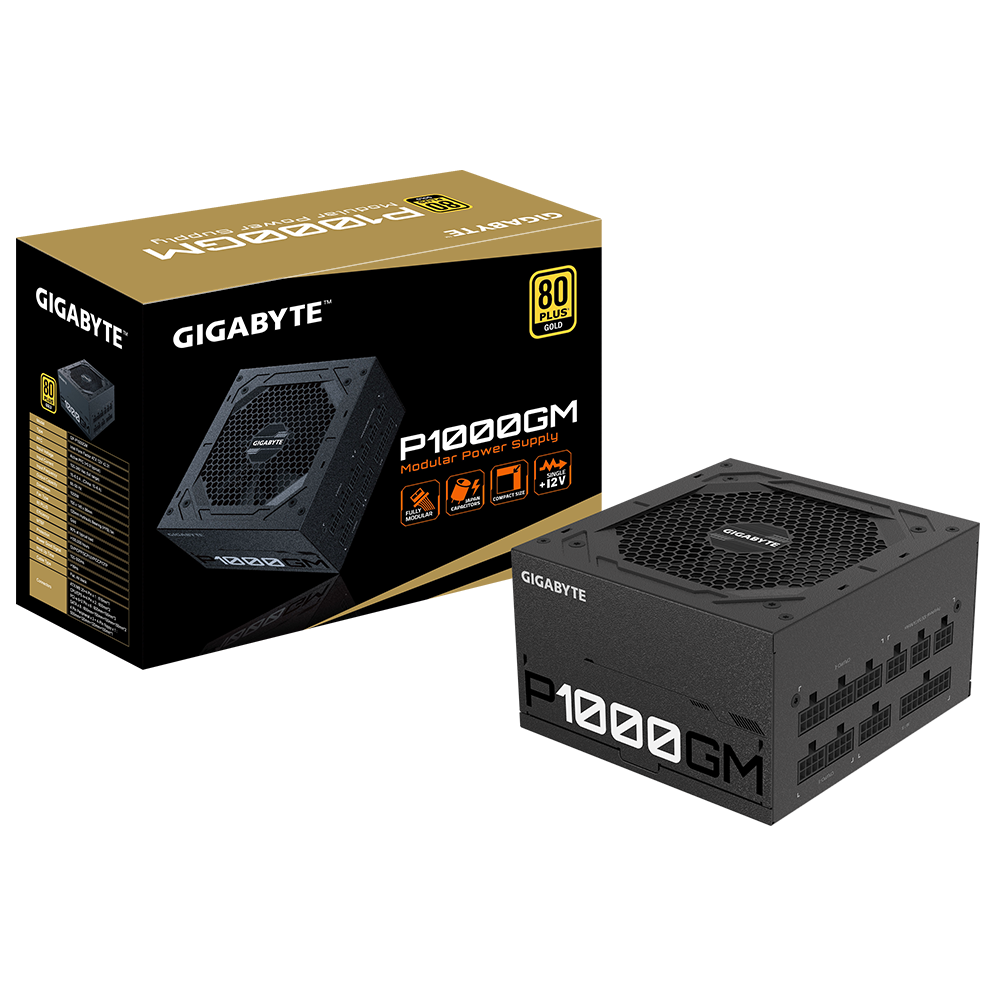

- ModelGP-P1000GM
- TypeIntel Form Factor ATX 12V v2.31
- PFCActive PFC (>0.9 typical)
- Input Voltage100-240 Vac (full range)
- Input Current15-6.5 A , (China: 10-6 A)
- Input Frequency60-50 Hz
- Output Capacity1000W
- Dimension150 x 140 x 86 mm

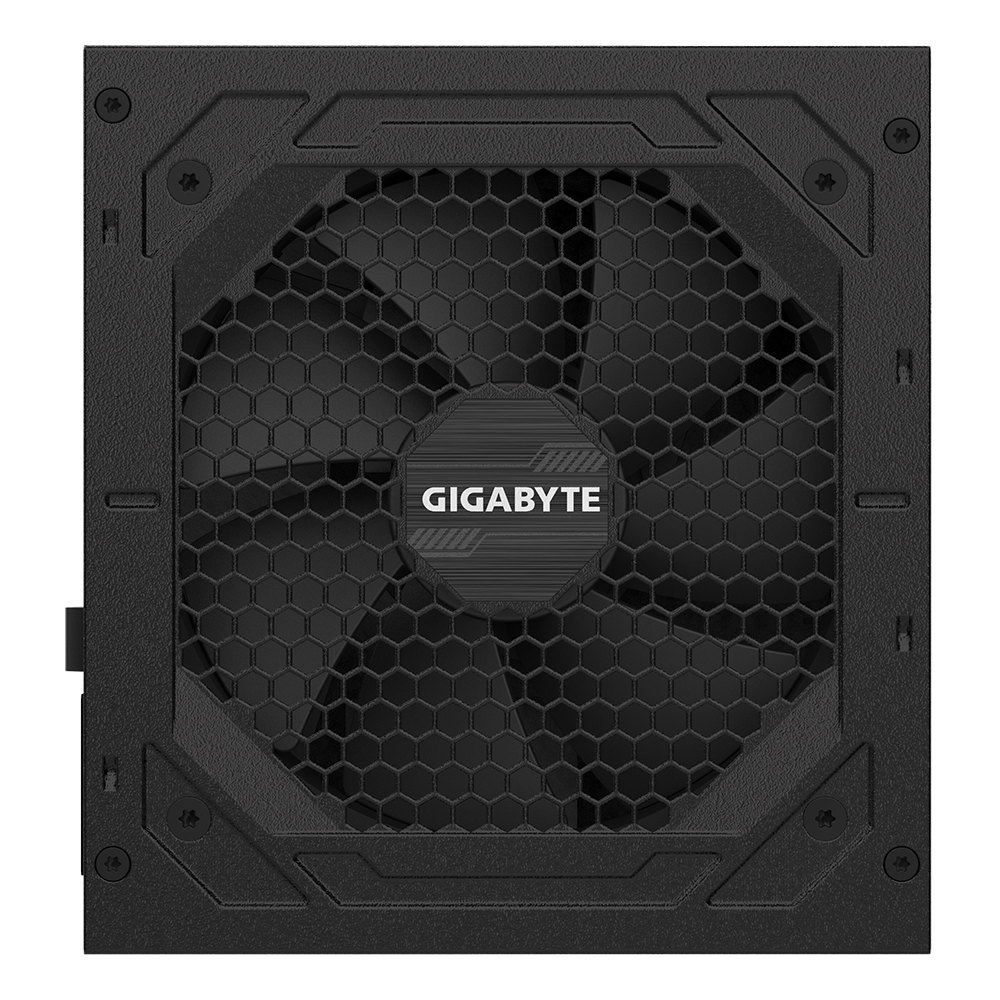

- Fan Type120mm Hydraulic Bearing ( HYB ) fan
- 80 PLUSGold
- Efficiency90% at typical load
- MTBF>100,000 hours
- ProtectionOVP/OPP/SCP/UVP/OCP/OTP
- Power Good Signal100-500ms
- Hold Up Time>16ms
- Cable TypeFlat, All black
- ConnectorsATX/MB 20+4 Pin x 1 : 610mm*1
CPU/EPS 4+4 Pin x 2 : 600mm*2
PCI-e 6+2 Pin x 6 : 600mm+150mm*3
SATA x 8 : 600mm+150mm+150mm+150mm*2 :
4 Pin Peripheral x 3 + 4-Pin floppy x 1 :
500mm+120mm+120mm+120mm *1
