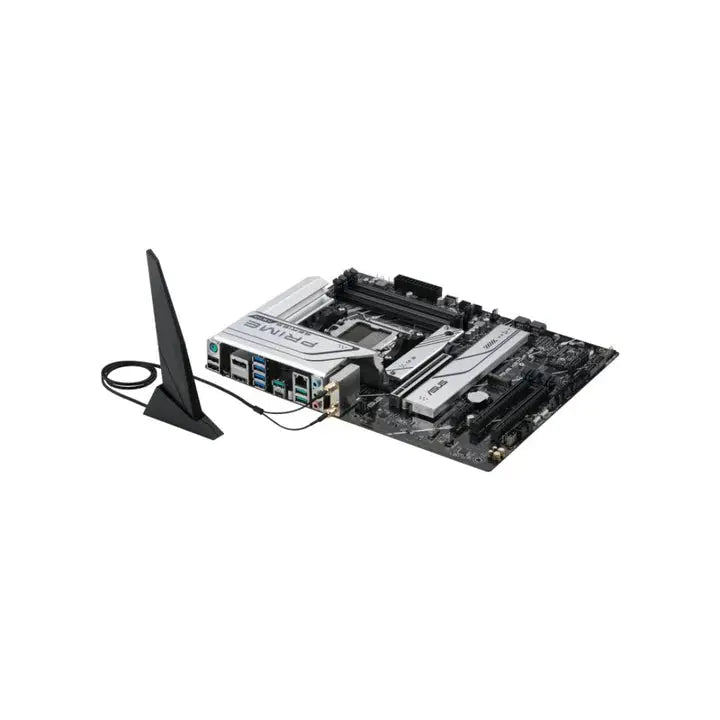

Motherboard Specification:
- Processor Support: AMD Socket AM5 for AMD Ryzen™ 7000 Series/8000 Series Desktop Processors
- Chipset: AMD X670 Chipset
- Memory Support: 4 x DIMM, Max. 192GB, DDR5 7600+(OC)/7200(OC)/7000(OC)/6800(OC)/6600(OC)/6400(OC)/6200(OC)/6000(OC)/5800(OC)/5600(OC)/5400(OC)/5200/5000/4800, ECC and Non-ECC, Un-buffered Memory
- Graphics Ports: 1 x DisplayPort, 1 x HDMI® port
-
Expansion Slots:
- AMD Ryzen™ 7000 Series Desktop Processors: 1 x PCIe 4.0 x16 slot (supports x16 mode)
- AMD Ryzen™ 8000 Series Desktop Processors: 1 x PCIe 4.0 x16 slot (supports x8/x4 mode)
- AMD X670 Chipset: 2 x PCIe 4.0 x16 slots (support x4 mode), 1 x PCIe 3.0 x1 slot
-
Storage:
- Total supports 3 x M.2 slots and 6 x SATA 6Gb/s ports
- M.2_1 slot (Key M) supports PCIe 5.0 x4 mode for AMD Ryzen™ 7000 Series Desktop Processors and PCIe 4.0 x4 mode for AMD Ryzen™ 8000 Series Desktop Processors
- M.2_2 slot (Key M) supports PCIe 4.0 x4 mode
- M.2_3 slot (Key M) supports PCIe 4.0 x4 mode
- Ethernet: 1 x Realtek 2.5Gb Ethernet
- Wireless & Bluetooth: Wi-Fi 6, 2x2 Wi-Fi 6 (802.11 a/b/g/n/ac/ax), Bluetooth v5.2
-
USB:
- Rear: 1 x USB 3.2 Gen 2x2 port (1 x USB Type-C®), 3 x USB 3.2 Gen 2 ports (3 x Type-A), 4 x USB 3.2 Gen 1 ports (4 x Type-A), 2 x USB 2.0 ports (2 x Type-A)
- Front: 1 x USB 3.2 Gen 1 connector (supports USB Type-C®), 2 x USB 3.2 Gen 1 headers, 2 x USB 2.0 headers
- Audio: Realtek 7.1 Surround Sound High Definition Audio CODEC
- Internal I/O Connectors: Includes fan, power, storage, USB, and other headers
- Back Panel I/O Ports: Includes USB, DisplayPort, HDMI®, Ethernet, audio, BIOS FlashBack™ button, PS/2 Keyboard/Mouse combo port, and more

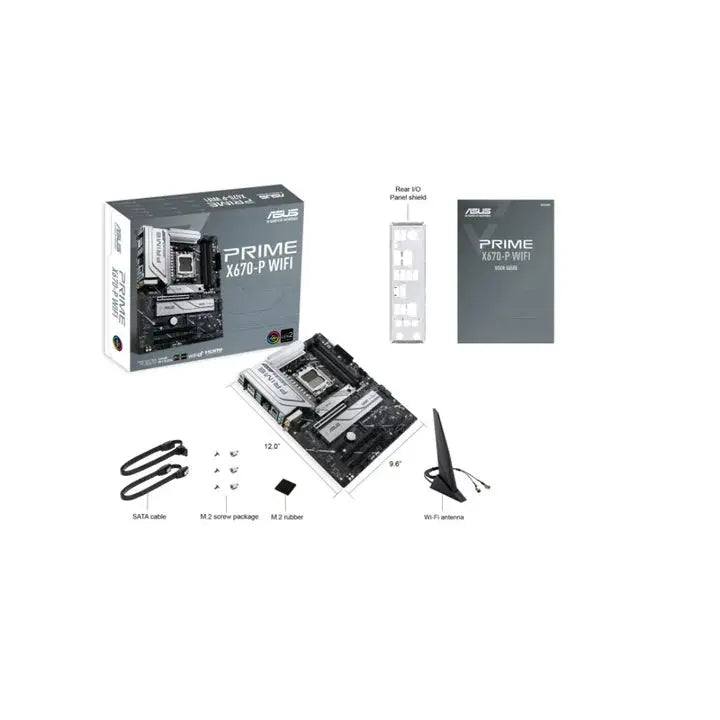

- Form Factor: ATX Form Factor, 12 inch x 9.6 inch (30.5 cm x 24.4 cm)
