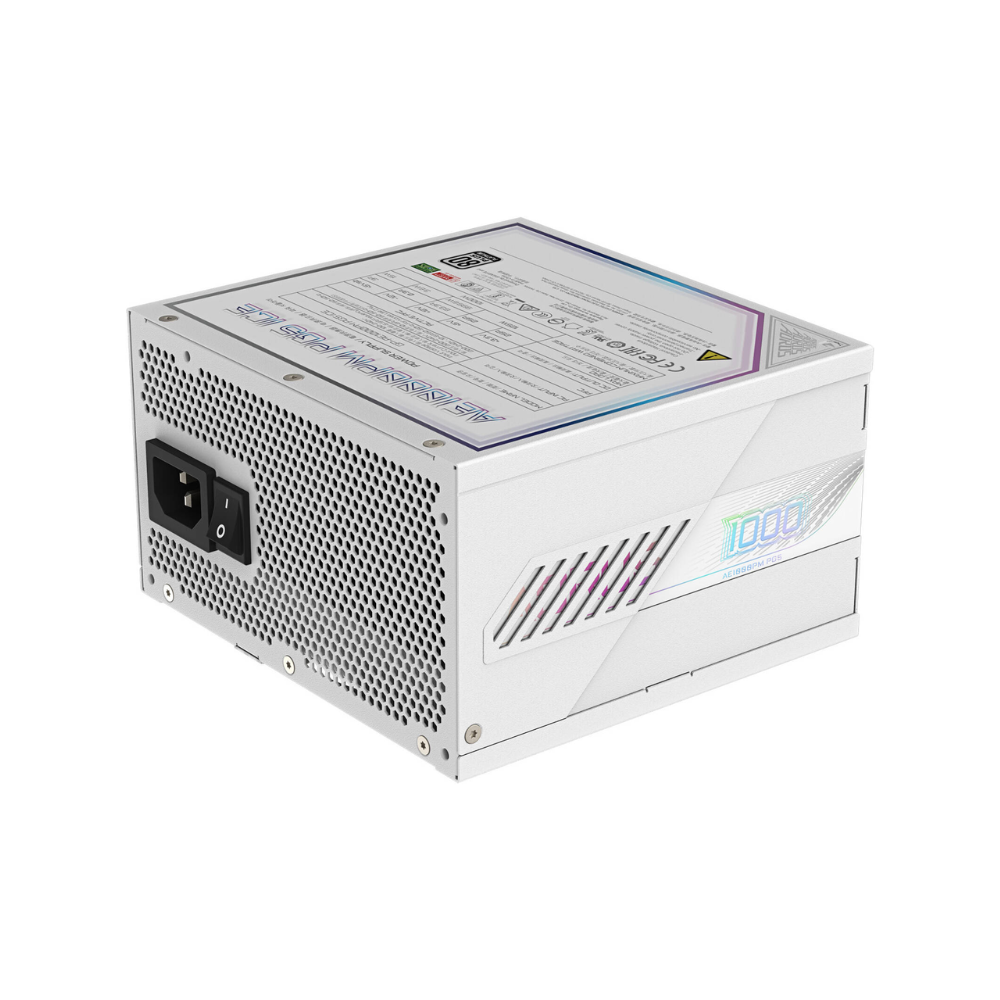

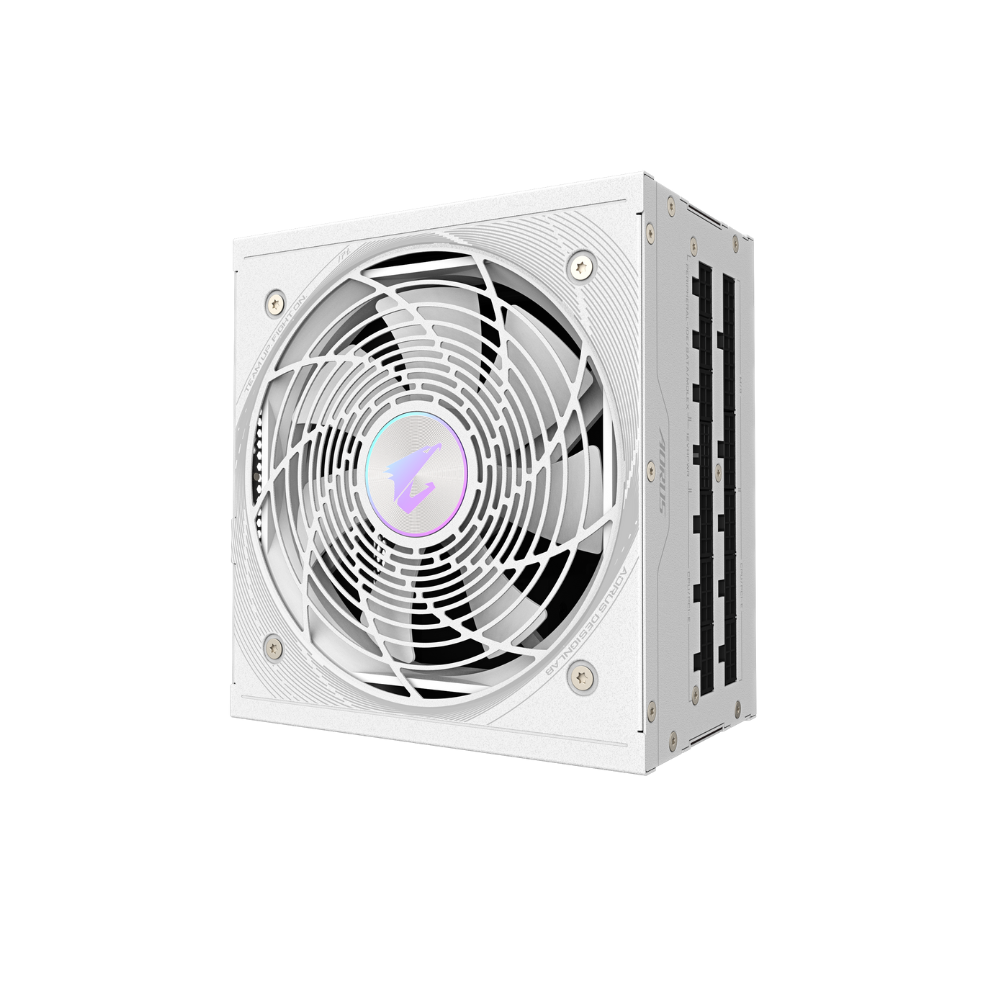

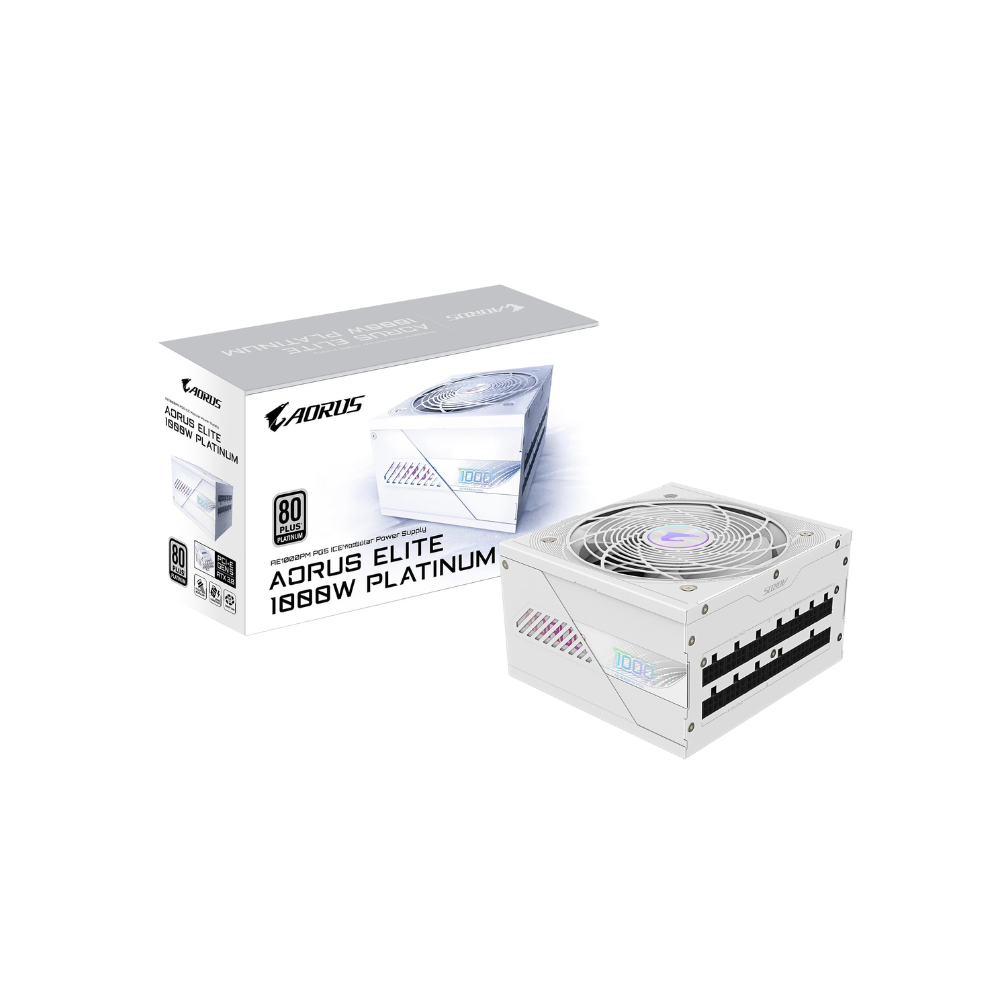

GIGABYTE PSU AORUS ELITE PG5 GP-AE1000PM 1000W PLATINUM PCIE5 ICE

Model GP-AE1000PM PG5 Type Intel Form Factor ATX 12V v3.1 PFC Active PFC (>0.9 typical) Input Voltage100-240 Vac (full range) Input Current15-6.5A Input Frequency60-50 Hz Output Capacity1000W Dimensions150 x 140 x 86mm Fan Type120mm Fluid Dynamic Bearing (FDB) Fan 80 PLUSPlatinum Efficiency92% at typical load MTBF>100,000 hours Protections OVP/OPP/SCP/UVP/OCP/OTP Power Good Signal100-150ms Hold Up Time>16ms Cable TypeFlat, All black Connectors ATX/MB 20+4 Pin x 1 : 650mm*1CPU/EPS 4+4 Pin x 2 : 700mm*2PCI-e 16 Pin x 1: 700mm*1PCI-e 6+2 Pin x 6 : 650mm+150mm*2, 750mm*2SATA x 8 : 600mm+150mm+150mm+150mm*24 Pin Peripheral x 4 : 500mm+150mm+150mm+150mm*1
